480 / 540 / 540 SS

Altoz XR

Pro quality at a perfect price.

480 / 540 / 540 SS

Altoz XR

Pro quality at a perfect price.

Driven By Passion. Powered By Performance.

The Altoz XR brings the power and precision of commercial mowers to you. This is simply the hardest working residential zero turn mower for those who need a mower that delivers all the results, with none of the compromises.

Cutting Deck

48-54”
Aero Deck™ Finish Deck with adjustable baffles

Miles Per Hour

8 mph

Hydro-Gear® Transmissions

ZT-3100

Engines

23 hp Kawasaki® FR

A Mower That Demands Attention

A mower for discerning homeowners who take as much pride in their equipment as they do in a job well done. With its laser-cut steel chassis, fabricated cutting deck and heat dissipating deck spindles, the Altoz XR is engineered to professional-grade standards.

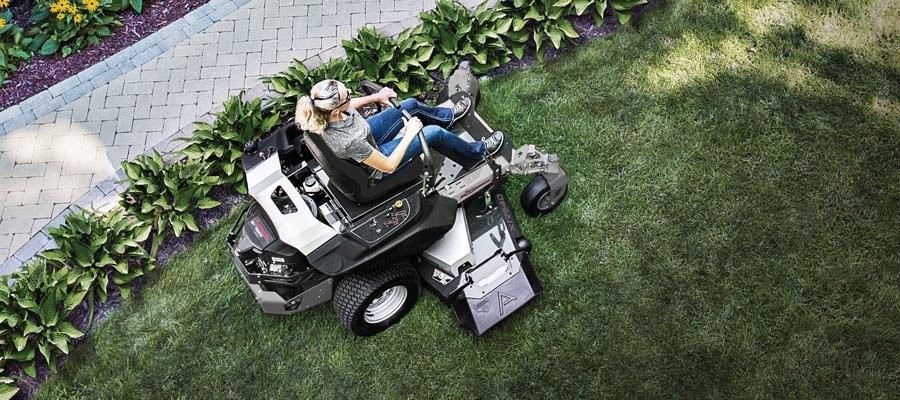

zero turn mower in yard

A Mower Built To Get The Job Done

We manufactured a mower that brings together high-quality components, unmatched performance, and low maintenance. So now you can spend your time taking care of projects around your whole property.

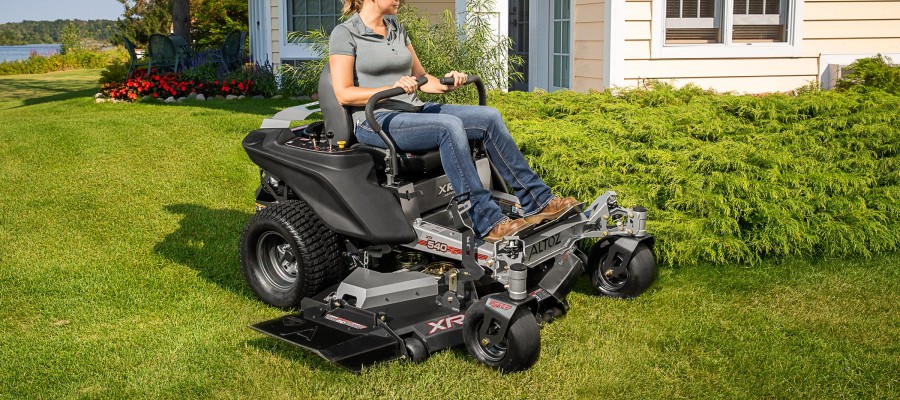

woman on zero turn lawn mower

Big Results. Bigger Value.

This mower is built with the components found in professional-grade mowers, at a value that can’t be matched.

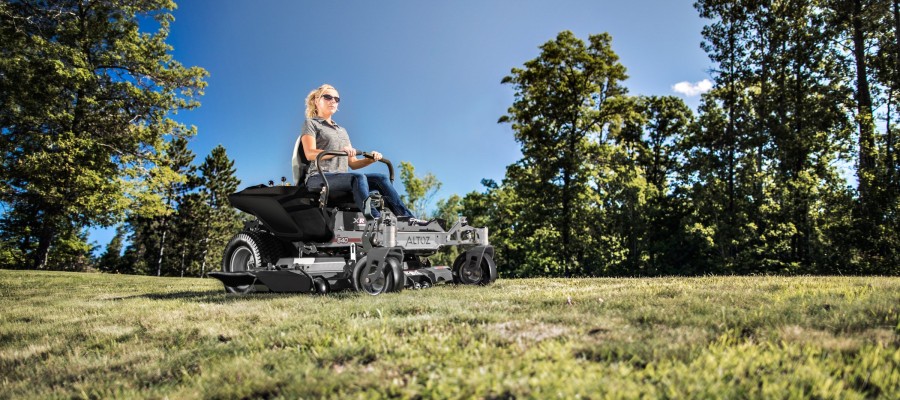

zero turn mower in yard

The Most Enjoyable Mower To Run

What good is a mower if you don’t love the ride? We made sure the Altoz XR has the latest comforts—like a mid-back, adjustable seat—and safety features, so you can sit back, relax, and enjoy the ride.

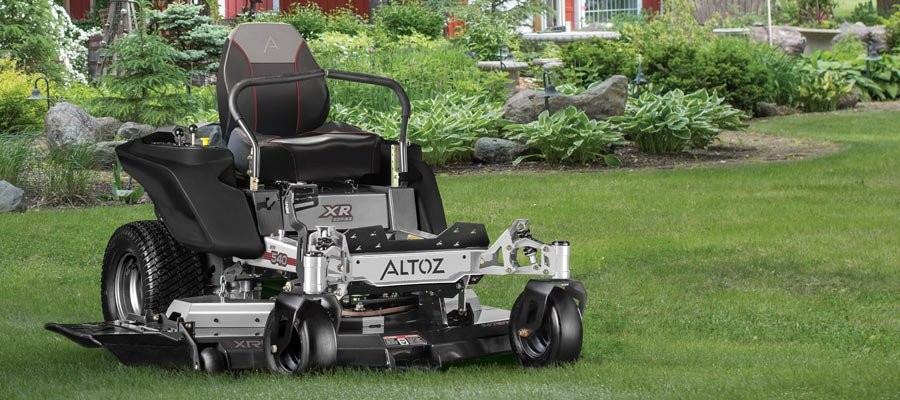

Altoz XR Zero Turn Mower

The Features You Need To Make Sure Your Property Is The Envy Of Everyone.

spindle

Maintenance Free

Featuring heat-dissipating aluminum deck spindle housings with sealed commercial bearings for strength and durability.

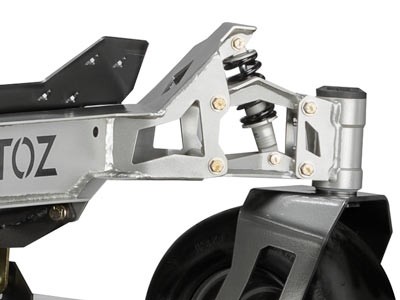

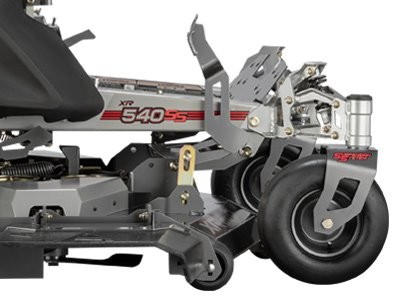

zero turn mower chassis

Rugged Chassis

Features the strength and durability to stand up to the demands of daily use.

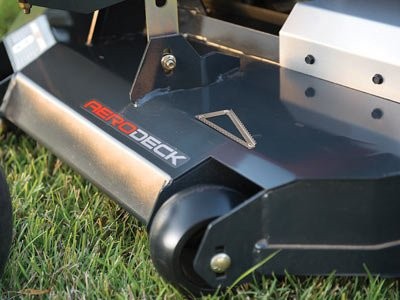

lawn mower deck

Aero Deck™ Finish Deck

A .270-inch fabricated steel that features recessed anti-scalp wheels and fully adjustable baffles for a professional cut.

See More

Accessories

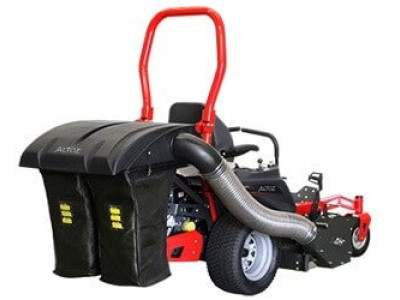

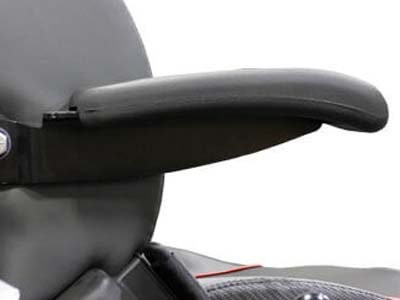

Sometimes it's the little things that can make all the difference. Altoz Genuine Accessories can transform your mower into a multi-function machine, provide year-round use for all-season applications, and make getting the job done faster and easier.

XR 480 / 540 / 540 SS

Engine
  • Horsepower : 23
  • Manufacturer : Kawasaki
  • Model : FR
  • Displacement (cc) : 726
  • Cylinders : 2
  • Air Filter : Single Stage
  • Fuel : Gasoline
  • Fuel Vol (gal) : 5
Drive Line
  • Trans Type : Hydrostatic
  • Trans Manufacturer : Hydro-Gear
  • Trans Model : ZT-3100
  • Max Forward Speed : 8 mph
  • Front Tire Size : 13"
  • Rear Tire Size : 20"
Features
  • Seat Suspension
  • Seat Adjust Fore and Aft
  • Cup Holder
  • Fuel Gauge
  • Digital Hour Meter
Dimension / Weight
  • Length : 80"
  • Width (Chute Up) : 49"
  • Height : 49"
  • Weight : 800 lbs / 820 lbs / 830 lbs
Cutting Deck
  • Cutting Width : 48" / 54" / 54"
  • Deck Type : Fabricated Steel
  • Deck Thickness : Laminated 10 and 10 Gauge
  • Deck Depth : 4.5"
  • Cut Height (Min - Max) : 1.5" - 4.25"
  • Cutting Height Steps : 1/4" Increments
  • Number of Blades : 3
  • Blade Speed : 18,500 fpm
  • Anti-Scalp Wheels : 4 Recessed
  • Deck Lifting System : Foot Pedal
  • Clutch Torque : 125 ft-lbs
  • Clutch Mfr : Warner
Warranty
  • Homeowner / Commercial : 3 year/400 hour - first 12 months no hour limitation
  • Rental : N/A
